While many of today’s lower cost phono stages are physically very small, we took the decision with the Ph100 to produce a narrow but full depth product. Too often we see cables that are either plainly visible or alternatively if placed closer to the rear of an amplifier, the weight of the cables can destabilize the phono stage.

Adding a phono preamplifier to the Heritage range has come as a direct response to repeated consumer demand.

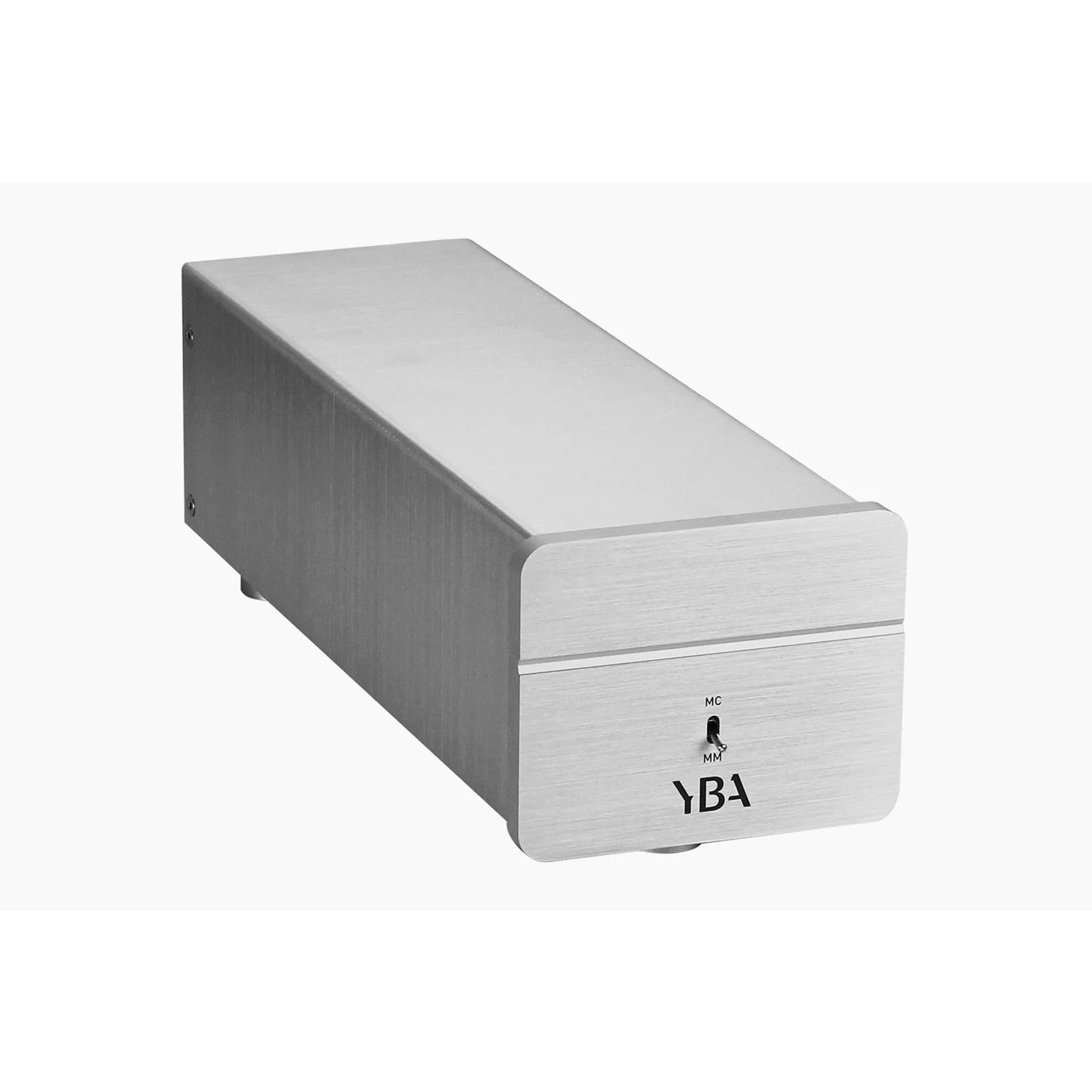

Our very well priced PH100 is both sleek and functional in its design and caters for moving magnet, moving coil plus high output moving coil cartridges. It is worth noting that the selector control on the front panel has only two options (MM or MC). The circuitry has been designed so that it will

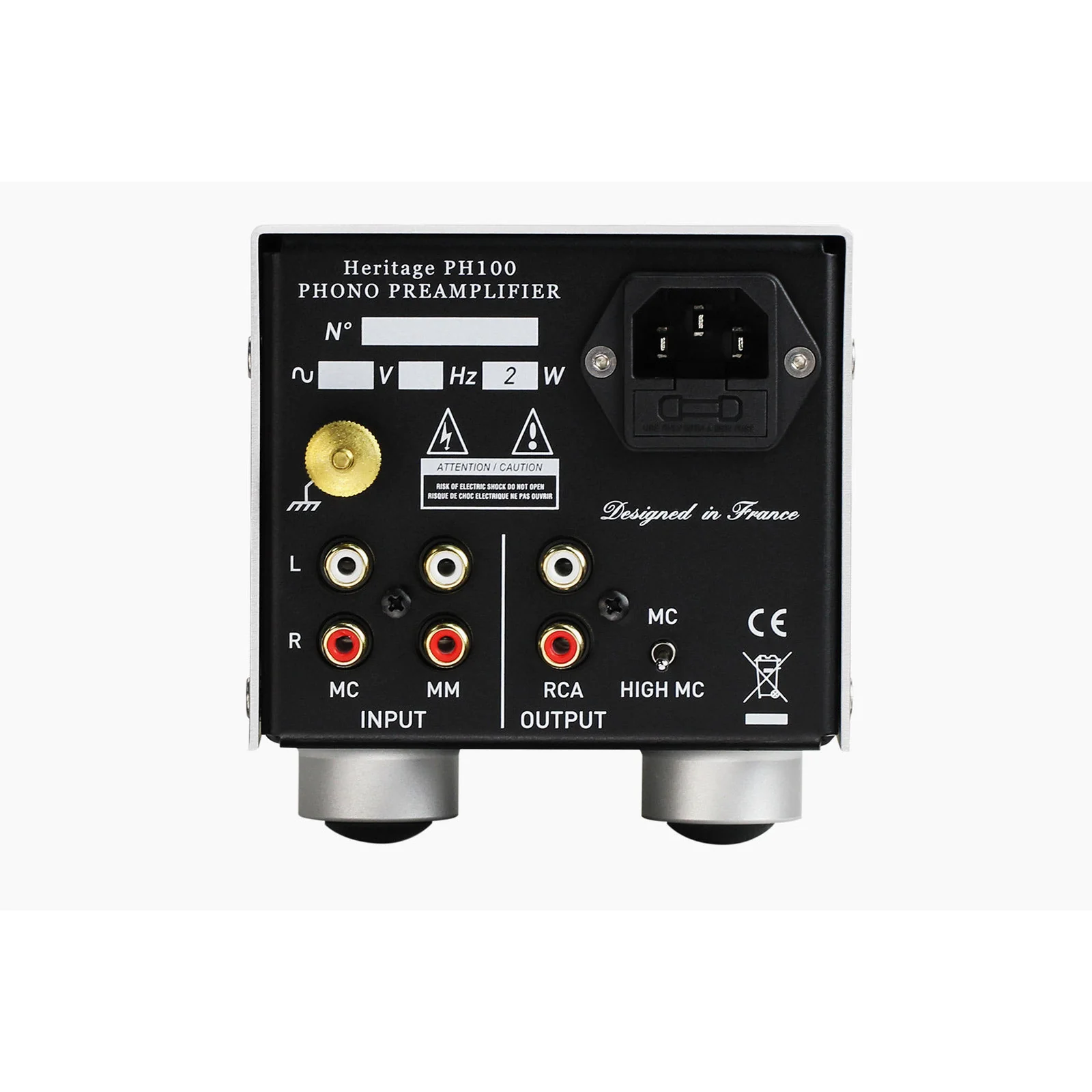

automatically sense which type of moving coil cartridge is being used and settings will adjust accordingly provided the correct selection is made from the toggle switch on the rear panel.

Featuring YBA’s own moving coil transformer, the design is uniquely suited to meet the different characteristics of moving coil cartridges.

Specs

Product type

Phono Preamplifier

MOVING MAGNET (MM)

Input Impedance 47 KΩ 45dB Gain

MOVING COIL (MC)

Input Impedance 2‐100 Ω 65dB Gain

HIGH OUTPUT MOVING COIL

Input Impedance 47 KΩ 50dB Gain

SNR

>90dB (A weighted at 40dB input gain)

THD+N

<0.005%

Inputs

2 x RCA Analogue signal inputs

OUTPUTS

1 x RCA

RIAA ACCURACY

Within 0.3dB /20Hz – 20kHz

Color / Finish

Brushed aluminium and acrylic

Dimensions (w x d x h)

125mm x 117.5mm x 360mm

Weight

2.5 Kg
