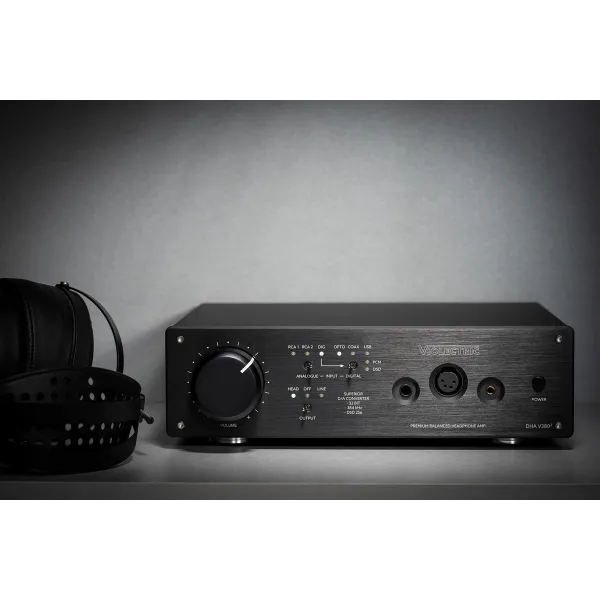

Violectric DHA V380 Digital Headphone Amplifier
The Violectric DHA V380 is a state-of-the-art DAC balanced headphone amp and a pre-amp.
The Violectric DHA V380 is a state-of-the-art DAC and a balanced headphone amplifier and a pre-amp function.
The DAC includes a 32-bitĀ re-sampler / re-clocker and two 32-bit DACs per channel and using an ESS-Tech ES9026 PRO chipset
The latest findings from the multiple test winners from Lake People, Violectric and Niimbus were implemented in the headphone amplifier.
Violectric DHA V380Ā not only offers a powerful headphone amplifier, but also:
LOWEST NOISEĀ - through a very small amount of internal gain. This makes the amplifier's self-generated noise inaudible.
HIGH OUTPUT VOLTAGEĀ - through 50 V internal operating voltage. Therefor ideally suited for high-impedance headphones deserving high output voltage swing.
HIGH OUTPUT POWERĀ - thanks to powerful amplifiers that offer far more power even the most demanding headphones would need. So best suited for headphones with low impedances as well as planar headphones !!
HIGH DAMPING FACTORĀ - due to lowest output impedance. Therefor the ideal match for difficult to drive headphones without negative side effects and with the guarantee for a uncompromising frequency response.
Features

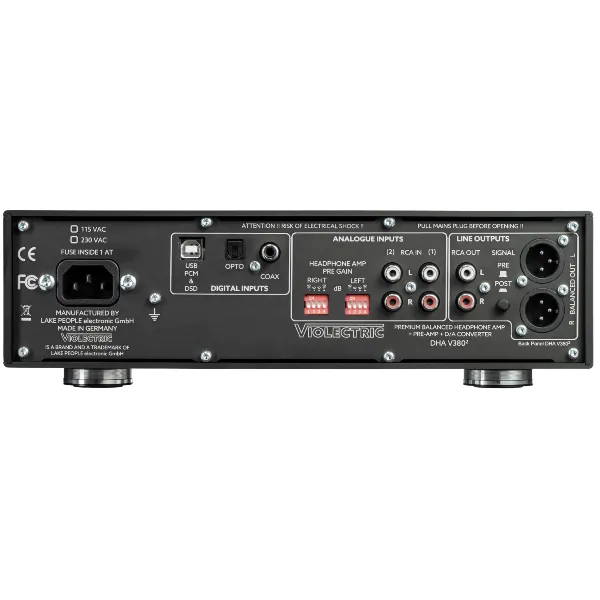

2 analogue stereo inputs, unbalanced via RCA
3 digital inputs, optical and coaxial with up to 24 bit and up to 192 kHz capability, USB with up to 32 bit and up to 384 kHz for PCM signals, DSD 64 ā 256 kHz
32 bit Resampling / Reclocking with 180 dB dynamic range, modes: On / Off / Best
2 x 32 bitĀ DAC per channel with -112 dB THD+N and 123 dB dynamic range
+/- 18 dB Pre-Gain for a perfect match of the DHA V380 between source and headphones
4 powerful amps offering 5000 mW Pmax into 50 Ohm and 21 V RMS into 600 Ohm
Headphone path and line-out path individually switchable
Headphone outputs: 1 x 4-pin XLR, balanced / 1 x Pentaconn, bal. / 1 x Ā¼ā jack, unbalanced
Line-out, stereo, 1 x unbalanced via RCA, 1 x balanced via XLR
1 toroidal transformer, > 26.500 uF filter capacity
Dimensions (W x H x D): 29 x 8 x 25 cm
Weight: approx. 6 kg
