Manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.

• Nude Elliptical diamond stylus profile
• Overhead mounting cartridge for installing into a headshell
• Moving magnet cartridge with removable stylus
• Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
• Anti-resonant Hopelex body

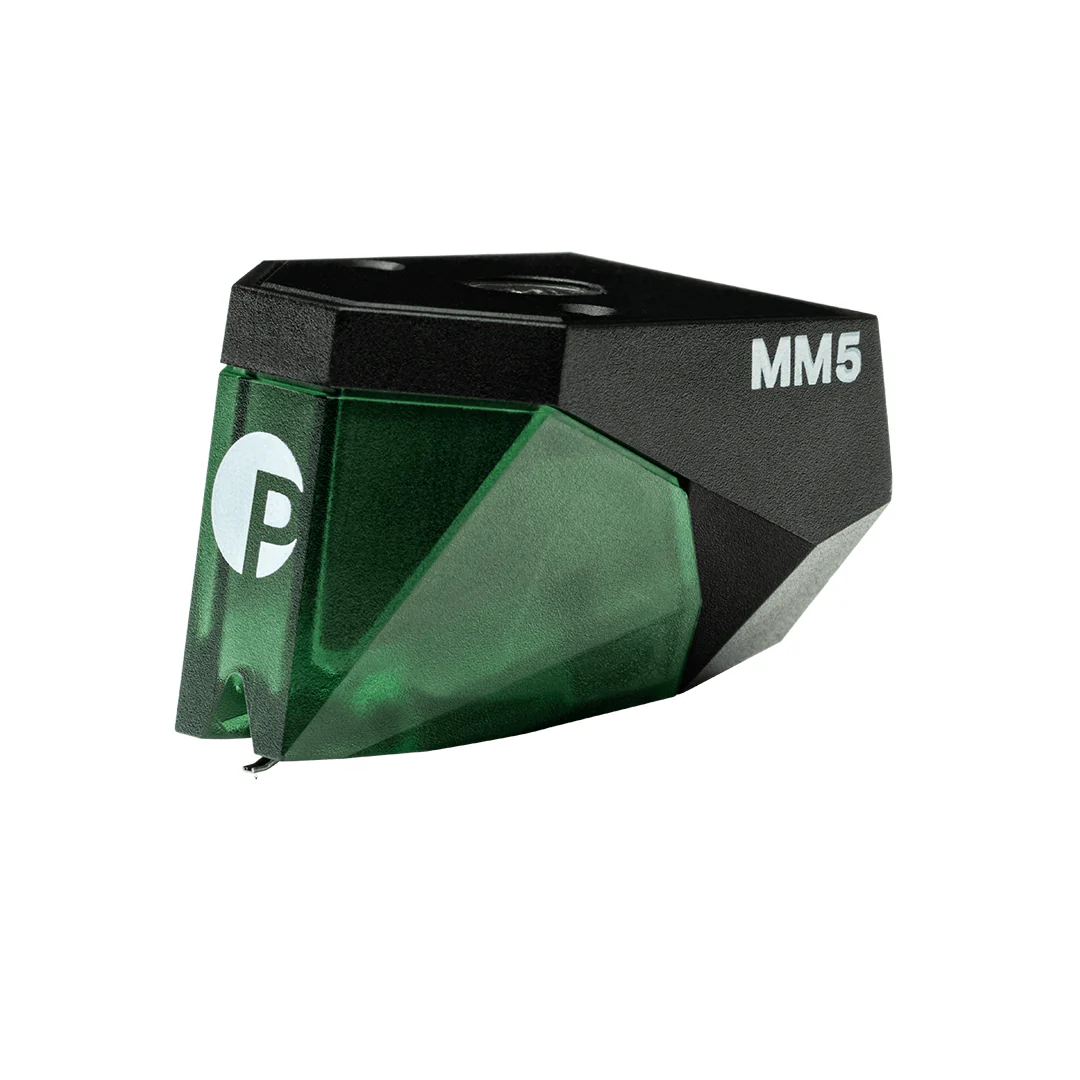

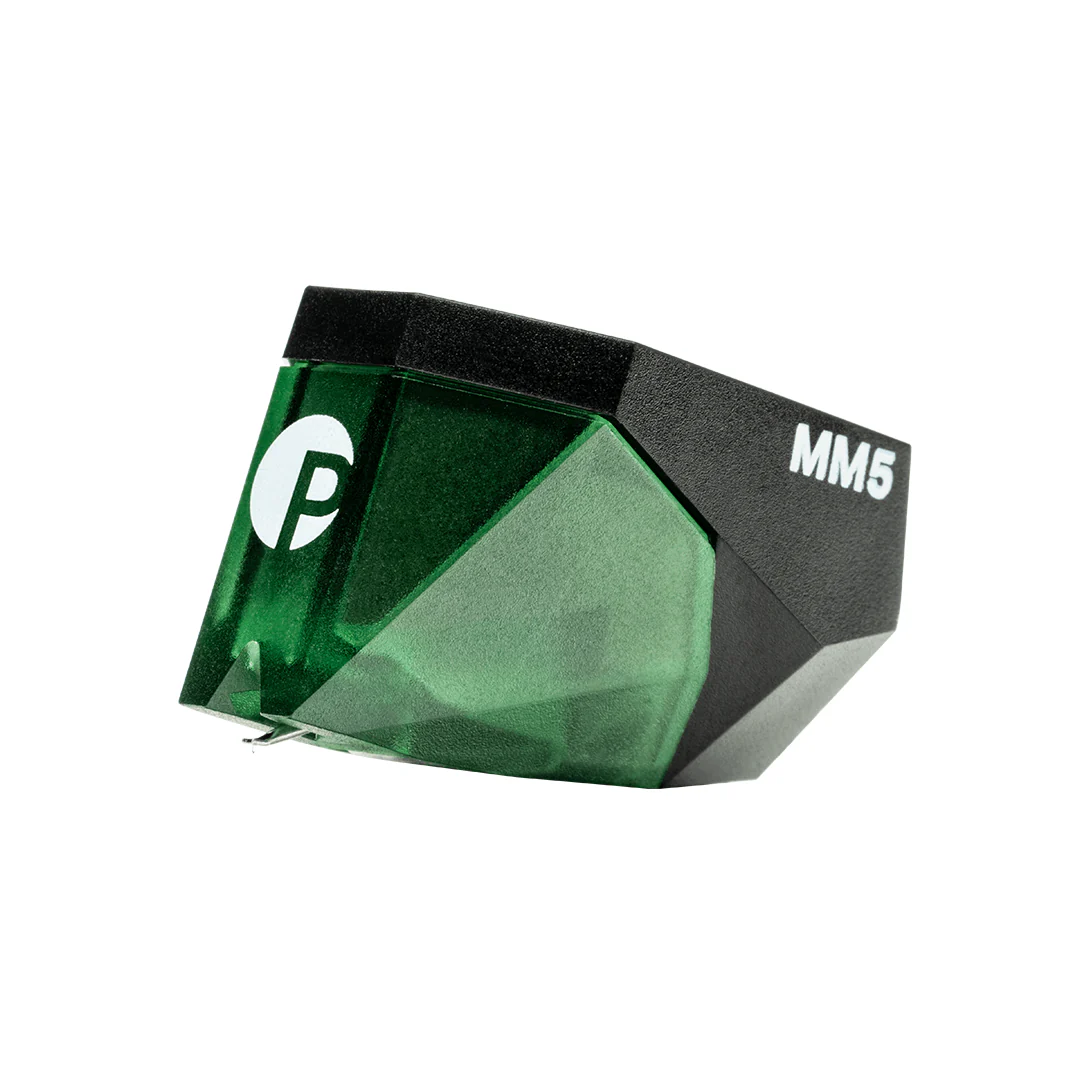

The Pick it MM 5 is equipped with a nude elliptical stylus tip, resulting in a highly detailed sound reproduction. The cartridge reveals all the micro details of a record, which are hidden by a lower quality cartridge. The instruments can be located very clearly and vocals are separated from the stereo image creating a big sound stage.

The cartridge is made from a unique combination of technologies, one of which is Ortofon‘s split pole pins in the generator system. This enables the cartridge to have a flat frequency response, which is comparable to MC cartridges.

Specs

• Output Voltage
  4 mV
• Channel Separation (@ 1000Hz)
  25 dB
• Frequency Response ±2dB
  20 - 25000 Hz
• Tracking Ability (@ 315Hz at Recommended Tracking Force)
  80 μm
• Stylus Type
  Nude Elliptical
• Stylus Tip Radius (r/R)
  8 / 18 μm
• Tracking Force Range
  1.6 - 2.0 g
• Recommended Tracking Force
  1.8 g
• Tracking Angle
  20 °
• Recommended Load Impedance
  47000 Ω
• Recommended Load Capacitance
  150 - 300 pF
• Cartridge Weight
  7.2 g
