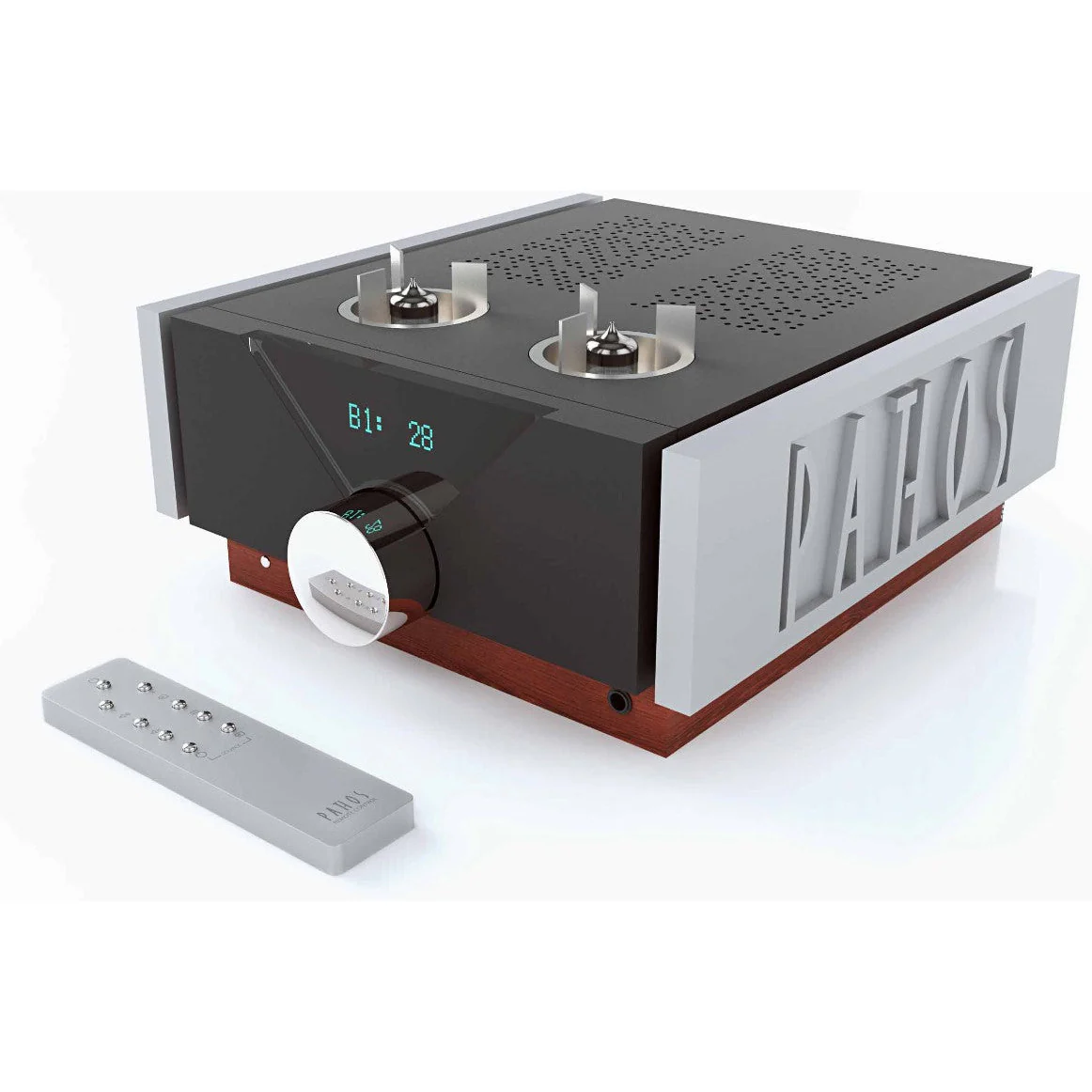

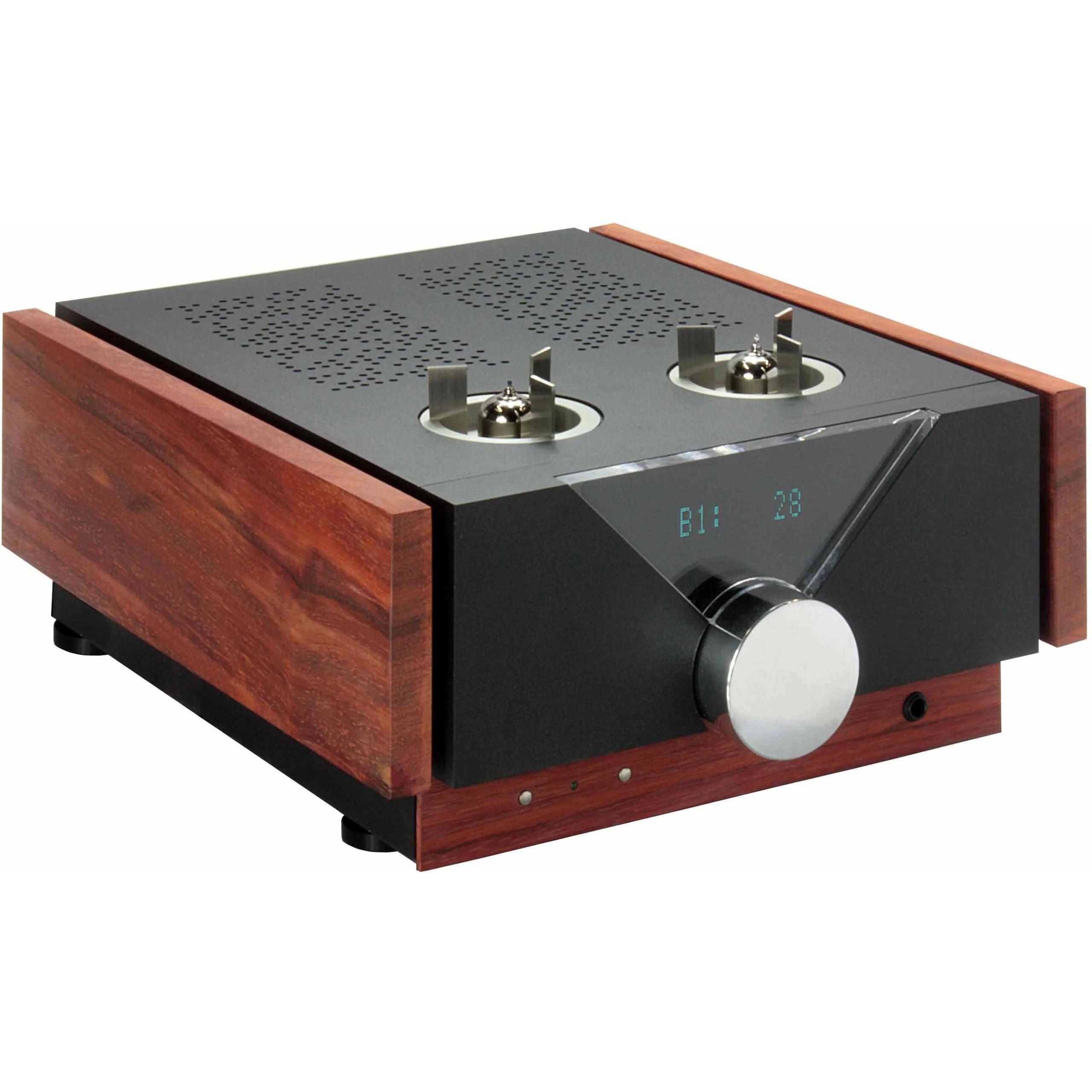

Pathos In Control MKII Preamplifier (Warehouse Sale)
InControl Mk2 hides aĀ fully balanced differential circuitry. We chase prestigious Tung-Sol ECC803S tubes to guarantee aĀ pure and defined sound, with an high gain. Mk2 version is more compact and light than previous InControl: all Pathos technology used for this pre-stage is held in the chassis, which perfectly matches with InPower Mk2.
VFD display is the same of InPol Heritage: bigger, clearer, with an adjustable brightness according to your preferences. The large full aluminum knob set the volume with maximum precision. 100 steps have an high dynamic range, in addition to the natural logarithmic progression of decibels: volume control is therefore versatile and adaptable.
This pre-amplifier operates with aĀ remote control, too: we chase the new universal remote control, which allows to drive all our units, including new Converto Mk2 RR. InControl Mk2 has 4 RCA inputs and 2 XLR inputs;Ā optional HiDac Mk2 boardĀ adds 4 digital inputs.
We implemented the sameĀ headphone amplifierĀ we used for Kratos; its dedicated circuitry supplies 2W32Ohm and let drive most of headphones in the market.
Specs
| Type | Pre-amplifier, pure class A, fully balanced |
| Tubes | 2x ECC803S Tung-Sol |
| Max. input voltage | 4,4 Vrms |
| Input impedance | 100K Ohm |
| Gain | Adjustable 6 dB / 12 dB |
| Frequency response | 2 Hz - 200 KHz Ā± 0,5 dB |
| Max output voltage | Balanced 10+10 Vrms Unbalanced 10 Vrms |
| Output polarity | Selectable by remote control |
| Connections | |
| Analogue inputs | 2 balanced XRL line, 4 unbalanced RCA line |
| Digital inputs (optional) | 2 USB type āBā ports, 1 coaxial SPDIF, 1 optical SPDIF (Installation of HiDac Mk2 board is required) |
| Outputs | 1 Unbalanced RCA, 1 Balanced XLR |
| Headphone Specifications | |
| Output power | 3,3 W @ 16 Ī© , 2 W @ 32 Ī© |
| Max output level | 10V RMS |
| Dimensions | |
| Amplifier | 290mm (D) x 360mm (W) x 155mm (H) |
| Weight | 18Kg |
