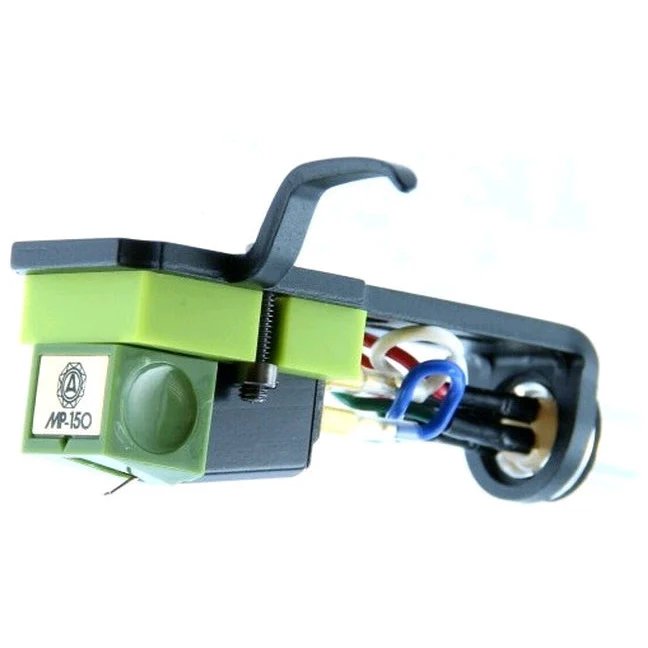

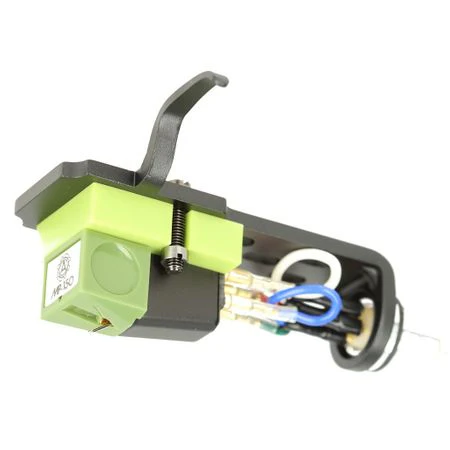

Nagaoka MP-150H Cartridge

Product image 1
Product image 2

Nagaoka MP-150H Cartridge

Nagaoka MP-150H Cartridge

The Nagaoka MP-150Ā phonograph cartridge offers superior clarity, detail and dynamic contrast and offers fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.
Features
-Superfine polished special eliptical diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

Model:Ā MP-150 (with stylus)
Type:Ā Magnetodynamic Permalloy
Output Voltage: 4.5mV (5cm/sec)
Frequency Characteristic:Ā 20 - 20,000Hz
Channel Separation:Ā 24dB (1Khz)
Channel Balance:Ā 1.5db or less
Load Resistance:Ā 47kohm
Cantilever:Ā Aluminum Alloy
Stylus Tip:Ā 0.4x0.7mil Elliptical Diamond
Elliptical Stylus Pressure:Ā 1.5 - 2.0g (1.7g)
Cartridge Weight:Ā 6.5g

$220.69

Original: $630.53

-65%
Nagaoka MP-150H Cartridgeā€”

$630.53

$220.69

Product Information

Shipping & Returns

Description

The Nagaoka MP-150Ā phonograph cartridge offers superior clarity, detail and dynamic contrast and offers fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.
Features
-Superfine polished special eliptical diamond stylus
-Powerfull samarium cobalt magnet
-Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs

Model:Ā MP-150 (with stylus)
Type:Ā Magnetodynamic Permalloy
Output Voltage: 4.5mV (5cm/sec)
Frequency Characteristic:Ā 20 - 20,000Hz
Channel Separation:Ā 24dB (1Khz)
Channel Balance:Ā 1.5db or less
Load Resistance:Ā 47kohm
Cantilever:Ā Aluminum Alloy
Stylus Tip:Ā 0.4x0.7mil Elliptical Diamond
Elliptical Stylus Pressure:Ā 1.5 - 2.0g (1.7g)
Cartridge Weight:Ā 6.5g
