Gold Note PSU-10 evo Power Supply (open Box)
OVER 25% OFF! This High-End quality in a compact size
Gold Note PSU-10 evoĀ Power Supply
Gold Note PSU-10 evo High performing power supply for DS-10 evo CD-10 and Hp-10
The inductive power supply that improves the sound performance of the DS-10, HP-10and CD-10 PLUS. The PSU-10 EVO is the super inductive power supply exclusively developed for them. Engineered with the best audio grade components, itās designed to enhance the performance of your system to a new level. With the PSU-10 EVO your system will reach a new pinnacle, delivering more detailed and clear sound.
EXTERNAL HIGH-PERFORMING POWER SUPPLYĀ
The PSU-10 EVO has been engineered with the finest audio grade components to enhance the performance of DS-10 and DS-10 PLUS even further.

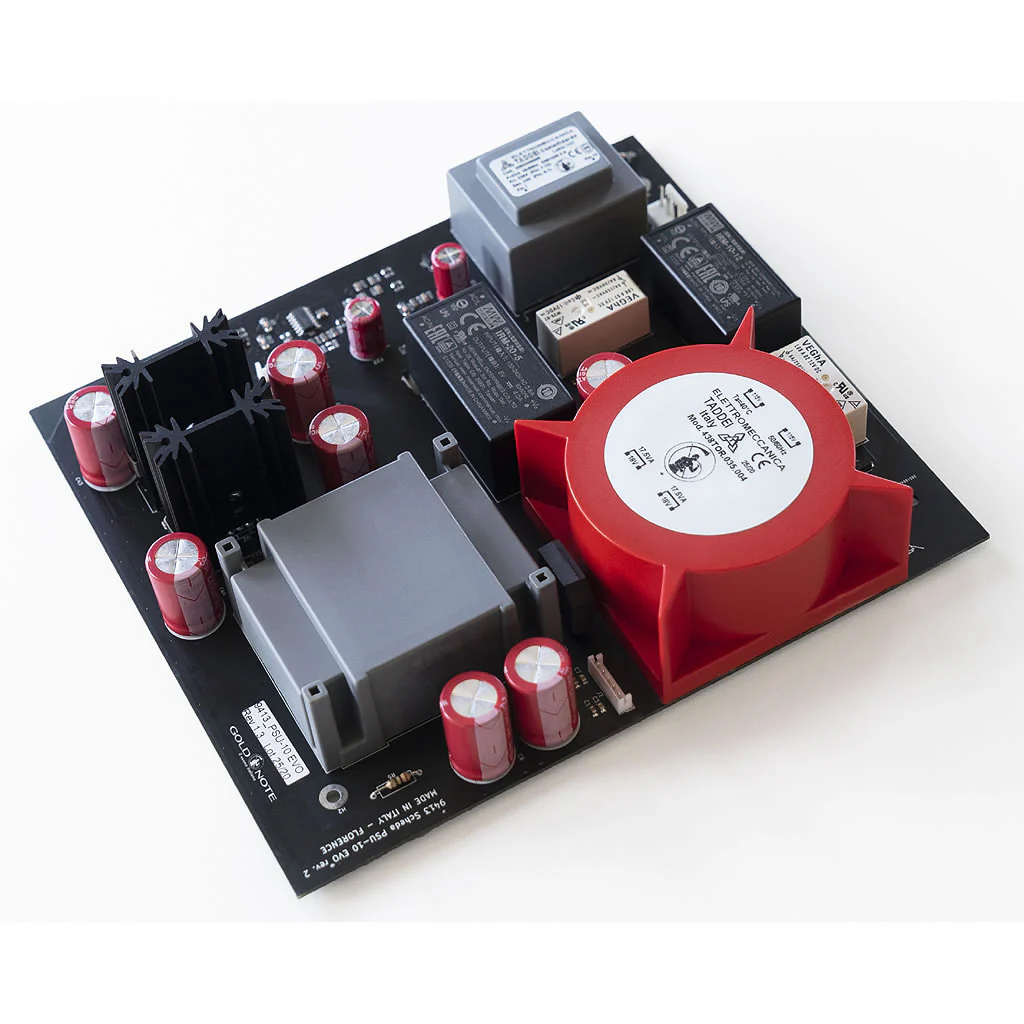

To achieve the highest performance, PSU-10 EVO features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators. The power supply stage takes advantage of a 4-transformer layout with 3 transformers entirely dedicated to the power supply and 1 for the inductive filter.
The Dual Choke Hybrid design features an inductive filter on the analogue stage and is powered by a double inductor, driving both the negative and positive high-current stages. Our proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system achieving ideal insulation, an ideal working environment for the electronics to perform at their best.
The ultra-clean power generated by the PSU-10 EVO allows DS-10, HP-10 and CD-10 to deliver greater dynamics, better resolution and even finer details resulting in improved realism, musicality as well as control.
Features
Dual Choke technology
Our proprietary technology removes impurity and interference from the AC power system.
Multi cascade design with 4 transformers
With 3 transformers for the power supply, and 1 dedicated to the inductive filter.
Modular Design
PSU-10 EVO can be used with DS-10 and DS-10 PLUS.
Specs
- PSU-10 EVO: Four rail audio grade power supply. Two ultra-low-noise voltage regulators. +12V, +5V for digital. +/- 15V for analog with inductive noise remover
- MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
- LINE NOISE REJECTION: >80dB
- COMMON MODE NOISE REJECTION: >80dB
- FULL POWER RESPONSE TIME: <2,5Āµsec
- POWER SUPPLY: 100V ā 120V / 220V ā 240V with automatic selection. Nominal Power: 70W. Dynamic Power: >100W. Standby Power: <1W
- WEIGHT: 4Kg net, 5Kg boxed
- FINISHES: Brushed Aluminium in Black, Silver or Gold
