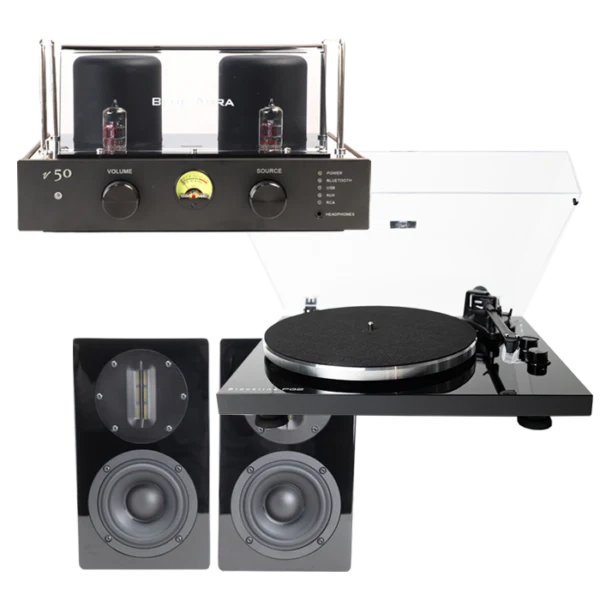

A truly unique hi-fi system

The Blackline Home Audio System is a sonically and aesthetically matched high-fidelity system which is driven by our award-winning v50 valve amplifier.

We have combined three of our premium products to create this true analogue system that offers the warm, detailed sound associated with valve amplification.

All connecting cables are included to enable you to start enjoying your music immediately.

Now our customers have the opportunity to obtain a complete hi-fi system driven by a valve amplifier.

By combining our award-winning v50 amplifier with our PG2 turntable, customers have the best of both worlds; the warm, detailed sound associated with valve amplification and the pure analogue signal a turntable provides.

The v50 amplifier is the hub of the system and will connect by hardwire or Bluetooth to the PG2.

V50 has RCA, USB Type C, 3.5mm mini-jack and Bluetooth 5.0 Inc. aptX inputs enabling all of your normal source devices to be connected.

PG2 offers a pure analogue listening experience producing every detail with clarity and as the artist intended

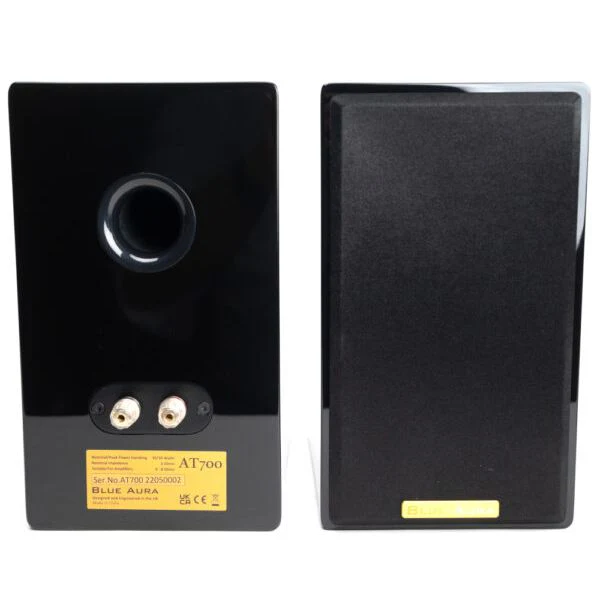

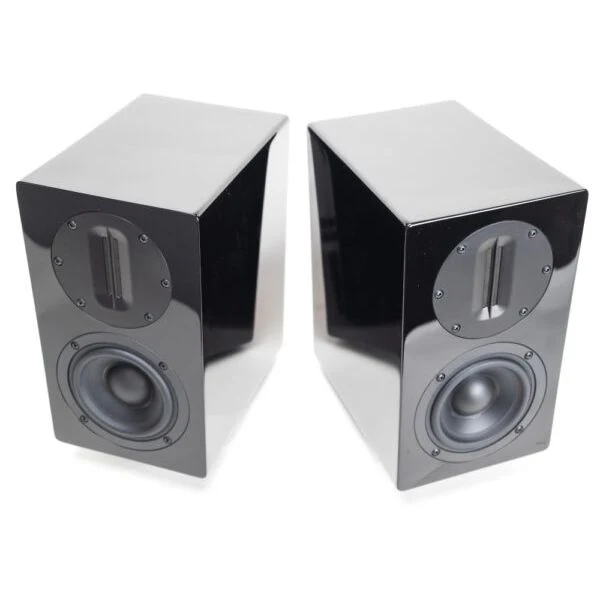

AT700 loudspeakers are a two-way, bass-reflex design with the bass reflex port situated on the back of the cabinet.
The front of the loudspeaker has an easily removable, magnetically held grille to create a clean front surface when the grille is removed.

Specs

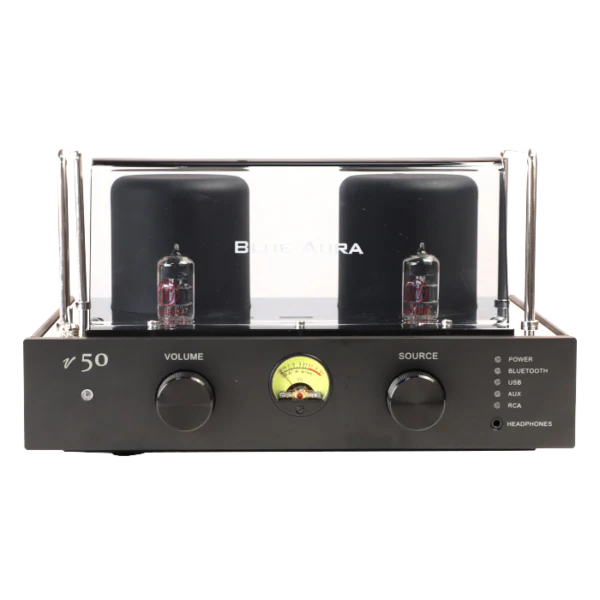

v50

Amplifier Type Power Output	Class A/B 50w per channel
Freq. Response.	20Hz – 100 kHz +/- 2dB
Harmonic distortion	50W/0.7% , 1W/0.18%
Signal to noise ratio	88dB ‘A’-weighted / 66 dB FLAT
Input Impedance	50K Ω
Input Sensitivity	580mV +/- 5% @50W
Output impedance	2/4 / 8 Ω
Vacuum tube type	12Ax7/ECC83 x 2
Audio Inputs	RCA/USB Type C/3.5mm mini-jack/Bluetooth 5.0 inc. aptX
Audio Outputs	Sub out (20Hz~850Hz)
Power Supply	AC 230V/50Hz
Dimensions	H: 170mm W: 200mm D: 294 mm Weight: 6Kg

AT700

High Frequency Unit	Air Motion Transformer
Low-Frequency Unit	4.5″ Paper Cone
Frequency Range	45-40000Hz
Crossover Frequency	12d/B/Octave @ 4.7KHz
Max RMS Power	50 watts per channel
Dimensions	H: 253mm W: 145mm D: 205mm
Weight	3.8 Kg each

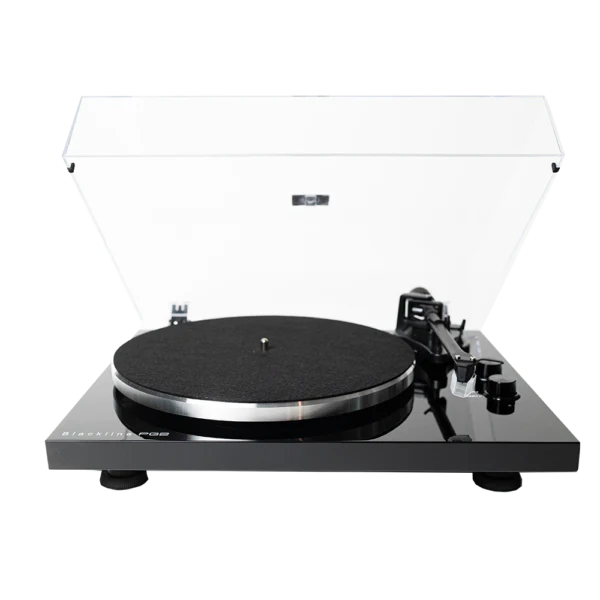

PG2

Nominal Speeds	33 1/3 & 45RPM
Speed Variance	±1.5%
Wow and Flutter	≤0.15%
Signal to Noise	55dB
Down force Range	2.5-6.0g
Effective Tonearm Length	8.6” (218.5mm)
Overhang	0.73in
Power Consumption	5W (Max.)
Outboard Power Supply	12V/ 500mA  AC-DC
Dimensions (W x H x D)	420 x 360 x 125mm
Net weight	4.8kgs
Inputs	RCA/Bluetooth 5.1
Cartridge Type	Custom Made
Cartridge Input	Moving Magnet
Arm Type	Custom Made



Carton contents

• 1 x v50 amplifier Black
• 1 x PG2 turntable Black
• 1 pair AT700 loudspeakers Black
• All connecting cables supplied.
