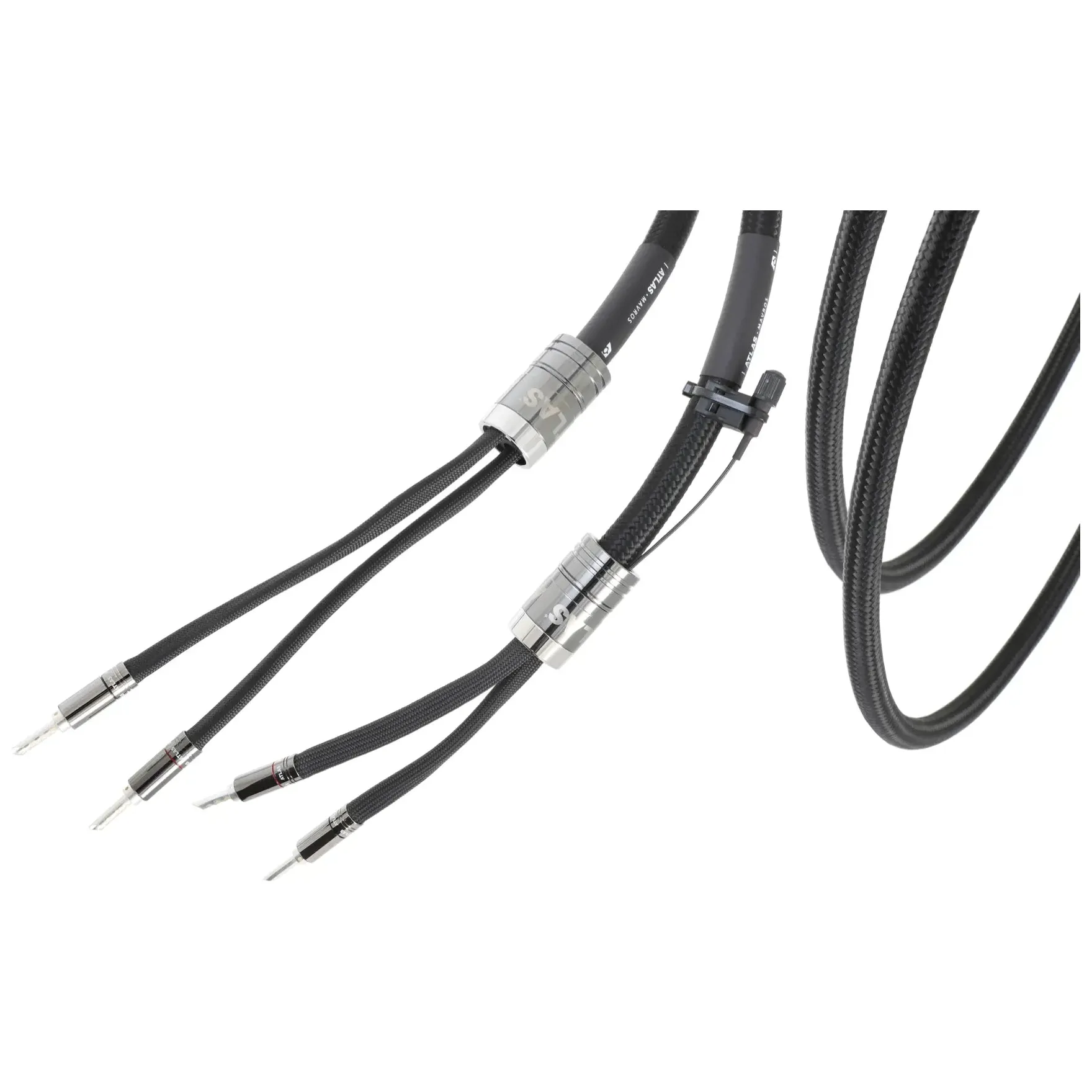

Atlas Mavros Grun Transpose 2:4 Speaker Cable
In pursuit of ever-higher levels of performance, we‘ve revised our acclaimed Mavros speaker cable.
Mavros has been a mainstay of our product lineup for some considerable length of time and has proven to be a reliably successful choice for an extremely wide range of equipment.
Of course, given our policy of continuous improvement, it’s been progressively refined and finessed over the years, and this latest-generation Mavros offers substantial gains in sound quality.
The new design takes some cues from our remarkable Arran Speaker cable; in other areas it‘s a result of investigating how we could improve both the efficiency and overall build quality of the cable, both factors which we know yield audible benefits.
Firstly, the conductor topology has been refined; uniquely designed to be optimised for single wire, bi-wire and bi-amping use, we’ve retained its combination of solid and stranded cores (same overall 2mm² as its predecessor) but in a slightly different configuration. (In the Bi-wire version, a single solid conductor is allocated to HF/Mid use whereas the stranded conductors are allocated to LF).
Bi-wire cables can offer performance benefits when the two halves of the loudspeaker's crossover are electrically ‘separated’ to allow bi-wiring (and bi-amping, if so desired). Available in 2–4 and 4–4 connector configurations.
Next, a revision of the dielectric, with our customary — and exclusive — microporous PTFE composition, but now with improvements to geometric stability. Wrapped microporous PTFE has huge benefits in terms of open, natural and accurate sound, however increasing the amount to maintain the desired electrical parameters during manufacturing can affect the cable geometry, becoming non-concentric. The solution is to apply a thin but strong Polyethylene liner around the microporous PTFE during the manufacturing process.
Lastly, the precision of the final assembly; we’ve invested heavily in optimising our production process for consistency and efficiency, and it shows. The fit, finish and ‘feel’ of the cable in your hand are superb. Every cable is hand-made by a skilled Atlas technician, each of whom takes a great deal of pride in their work. An included signed certificate of authenticity identifies the person who built your cable.
This cable is fitted as standard with the Transpose Modular Termination System, which allows easy switching between Z (Gold or Silver 4mm Z-plug), S (Gold or Silver OCC spade) or E (Expanding plug versions as your requirements change. Expanding 4mm plugs are the standard configuration, please specify at time of purchase if you require an alternative connector. Alternative connector kits are available from your Atlas dealer.
Specs
| Construction | Solid/stranded |
| Conductor | OCC Copper |
| Dielectric | Microporous PTFE |
| Screen | Foil/Braid; Dual Drain |
| Capacitance | 74 pF/m |
| Inductance | 0.479 µH/m |
| Resistance | 0.0044 Ohms/m |
| Outside Diameter | 16.00mm |
| Colour/Finish | Black Fabric/Luxe options |
